Power outages can cause inconvenience and potential damage to home appliances. That’s why having a backup generator is essential nowadays. However, without an efficient way to switch between the main power supply and the generator, the process can be slow and inconvenient. This is where an automatic transfer switch for generator becomes essential. In this post, let’s all learn what it is and how it works.
Home Generator Transfer Switch
- What Is an Automatic Transfer Switch (ATS)?
- How Does an Automatic Transfer Switch Work?
- Types of Transfer Switches
- Considerations When Choosing an Automatic Transfer Switch
What Is an Automatic Transfer Switch (ATS)?
An automatic transfer switch (ATS) is a crucial device that ensures a smooth transition between a primary power source, such as the electrical grid, and a backup generator. When a power outage occurs, the ATS detects the loss of electricity and automatically switches to generator power. Thus restoring the electrical supply without requiring manual intervention. Once the main power source is restored, the ATS transfers the load back and shuts down the generator, ensuring an uninterrupted power supply with minimal disruption.
ATS vs. Manual Transfer Switch
While both automatic transfer switches and manual transfer switches serve the same purpose, they differ significantly in operation and convenience. The key advantage of an ATS is its ability to automatically restore power without human intervention. This is particularly useful for homeowners who are away during an outage or for critical systems that require an uninterrupted power supply, such as medical equipment or security systems.
On the other hand, a manual transfer switch requires the user to physically switch over to generator power when an outage occurs. While this option is more affordable, it introduces delays and potential safety risks if not operated correctly.
See also: Smart Home Technologies You Didn’t Know Could Be Automated
How Does an Automatic Transfer Switch Work?
An automatic transfer switch (ATS) plays a vital role in ensuring uninterrupted power during an outage. It constantly monitors the electrical supply from the main grid and instantly detects any loss of power. When an outage occurs, the ATS automatically signals the generator to start and seamlessly transfers the electrical load to backup power. Once the grid power is restored, the ATS safely switches the load back to the main supply and shuts down the generator.
Step-by-Step Process of an ATS in Action
- Power Monitoring – The ATS continuously monitors the electrical supply from the utility grid. As long as the grid power is stable, the ATS keeps the generator off and the electrical system connected to the main supply.
- Detecting Power Loss – If a power outage occurs, the ATS quickly detects the disruption and waits a few seconds to confirm that it’s a sustained outage rather than a momentary fluctuation.
- Activating the Generator – Once the outage is confirmed, the ATS sends a signal to start the generator. Most standby generators take a few seconds to reach full operational capacity.
- Transferring Power to the Generator – As soon as the generator is running at a stable voltage and frequency, the ATS disconnects the electrical system from the utility grid and transfers the load to the generator, restoring power to the home or business.
- Monitoring Utility Power Restoration – While running on generator power, the ATS continues to monitor the main utility supply. When grid power is restored, the ATS ensures the supply is stable before initiating a switch back.
- Reconnecting to the Grid – Once the grid power remains stable for a set period, the ATS safely disconnects the generator and reconnects the system to the utility power source.
- Shutting Down the Generator – After transferring power back to the main grid, the ATS signals the generator to shut down, returning it to standby mode until the next outage occurs.
Types of Transfer Switches
Transfer switches come in different types, each designed to facilitate the transition between utility power and a backup generator:
1. Manual Transfer Switch
A manual transfer switch requires the user to physically switch from the main power supply to the generator during an outage. This type of switch is often installed in homes with portable generators and is a more budget-friendly option.
Key Characteristics:
- Requires the homeowner to manually flip the switch when power goes out.
- More affordable and simpler to install compared to an automatic transfer switch.
- Suitable for backup power setups that do not require an immediate response.
- Poses a risk of delay and human error, which could lead to power disruptions.
2. Automatic Transfer Switch (ATS)
An automatic transfer switch detects power loss and automatically switches to generator power without user intervention. It is ideal for homes, businesses, and critical facilities that require an instant, uninterrupted power supply.
Key Characteristics:
- Constantly monitors utility power and immediately activates the generator when an outage occurs.
- Ensures a seamless transition, reducing downtime and inconvenience.
- Prevents backfeeding, enhancing safety for utility workers and household appliances.
- Ideal for standby generators that remain on standby until needed.
3. 50 Amp Transfer Switch – A Common Choice for Home Generators
A 50 amp transfer switch is a specific type of ATS or manual switch that is designed to handle higher power loads, making it a popular choice for home generator transfer switches.
Why Choose a 50 Amp Transfer Switch?
- Supports larger home generators, typically capable of running multiple appliances simultaneously.
- Ensures adequate power supply for essential household systems, such as HVAC units, refrigerators, and lighting.
- Helps prevent overload by distributing power effectively between circuits.
- Often used in homes with standby generators rated between 10,000 to 12,500 watts.
Considerations When Choosing an Automatic Transfer Switch
Selecting the right automatic transfer switch (ATS) is essential for ensuring a reliable and efficient power transition during outages. Several factors should be considered to ensure compatibility, safety, and optimal performance. Below are the key considerations when choosing an ATS for your generator.
1. Power Rating – Matching the Switch with Generator Capacity
One of the most important factors when choosing an ATS is its power rating, which must match or exceed the output of the generator.
- 50 Amp Transfer Switch – A common choice for residential standby generators, capable of handling up to 12,500 watts, enough to power essential appliances like refrigerators, lighting, HVAC systems, and sump pumps.
- Smaller Transfer Switches (30 Amp) – Suitable for portable generators or limited backup power needs.
- Larger Transfer Switches (100 Amp or More) – Used for whole-house generators or large commercial applications.
Selecting a switch with the correct amp rating prevents overloading or underutilizing the generator, ensuring efficient power distribution.
2. Compatibility with Generator Type
Not all transfer switches work with every generator model. Before purchasing an ATS, ensure that it is compatible with the type and specifications of your generator.

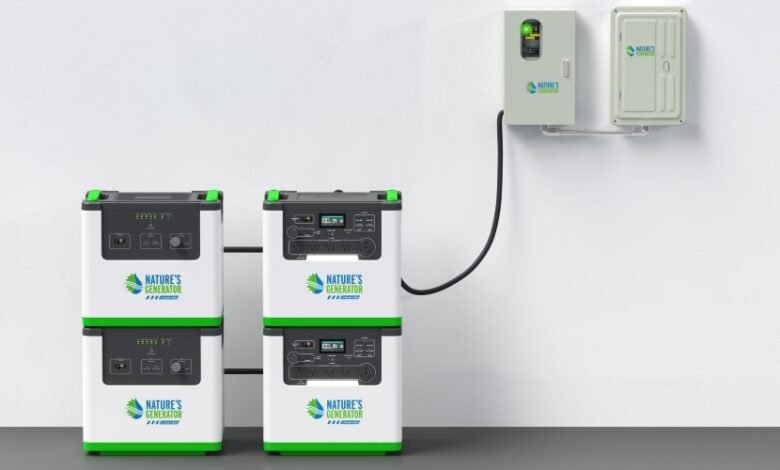

- Standby Generators – Typically require pre-wired ATS systems designed for automatic operation. For example, Nature’s Generator MyGrid offers a transfer switch for seamless home integration. With this, you don’t have to worry about any outage as it will be activated once power interruption occurs. Also, its power output ensures it can charge and sustain several devices and appliances.
- Portable Generators – May need a manual transfer switch or a compatible ATS with an appropriate connector.
- Single-Phase vs. Three-Phase Generators – Residential systems usually use single-phase ATS, while commercial setups may require three-phase options.
3. Installation Requirements – Professional Installation Needed
Installing an automatic transfer switch is a complex electrical task that typically requires a licensed electrician to ensure safety and compliance with local codes.
Key installation considerations include:
- Electrical Panel Integration – The ATS must be properly connected to the home’s breaker panel to ensure correct load distribution.
- Wiring and Circuit Configuration – Incorrect wiring can lead to power surges, backfeeding risks, or equipment damage.
- Local Electrical Codes & Permits – Many areas require permits and inspections to ensure compliance with safety regulations.
Conclusion
An automatic transfer switch for generator is a vital component for ensuring seamless power backup during outages. When selecting an ATS, it’s essential to consider factors such as power rating, generator compatibility, and installation requirements. With all this information available, you now don’t have to worry about power interruption with your ATS-equipped backup generator.
