In the complex and ever-evolving world of pipeline maintenance, pipeline pigs play a critical role in ensuring safe, efficient, and uninterrupted operations. These mechanical devices are inserted into pipelines to clean, inspect, or separate product flow without interrupting service. However, not all pigs are created equal. There are many pipeline pig types, each tailored to specific functions and pipeline environments.
Understanding the different pipeline pig types is essential for engineers, maintenance teams, and industry professionals who work with long-distance transport systems in oil, gas, chemical, water, and even food processing sectors. This guide explores the major pig types, their unique characteristics, and the advantages they bring to industrial operations.
What Are Pipeline Pigs?
Before diving into pipeline pig types, it’s important to grasp the basic concept of what a pipeline pig is. A pig is a tool used to travel through the interior of a pipeline, propelled either by product flow or an external mechanical system. It performs a wide range of tasks, from cleaning residue and checking pipe conditions to separating fluids.
The term “pig” is believed to originate from the squealing sound made by early cleaning devices as they moved through the pipeline. Over the decades, pigging technology has advanced dramatically, leading to the development of specialized tools designed for specific operational needs.
Why the Variety? The Importance of Choosing the Right Pig
Selecting the right pig type is crucial for operational success. Using the wrong pig can lead to blockages, equipment damage, or ineffective maintenance. Different pipeline pig types are designed to handle:
- Specific product types (oil, gas, chemicals, water)
- Pipe diameters and wall conditions
- Cleaning vs. inspection vs. product separation
- Pressure and flow variations
- Risk of corrosion or scaling
Each pig type is engineered for optimal performance in its intended environment. Let’s explore the most commonly used pipeline pig types in detail.
See also: How AI Face Swap Technology Is Shaping Influencer Marketing
1. Foam Pigs
Overview:
Foam pigs are made from open-cell polyurethane foam and are some of the most versatile pigs available. They come in various densities and may be coated with polyurethane or embedded with wire mesh or abrasive particles.
Applications:
- Light cleaning
- Product removal
- Drying pipelines
- Pigging irregular or old pipelines
Advantages:
- Low cost
- Flexibility (ideal for tight bends or changes in diameter)
- Can be disposable
Limitations:
- Not suitable for heavy debris removal or high-pressure lines
2. Utility Pigs
Overview:
Utility pigs are built for general cleaning and maintenance. This category includes cup pigs, disc pigs, and brush pigs. They are made from durable materials and feature components like sealing cups, discs, or brushes.
Applications:
- Removing wax, rust, and debris
- Liquid removal
- Improving flow efficiency

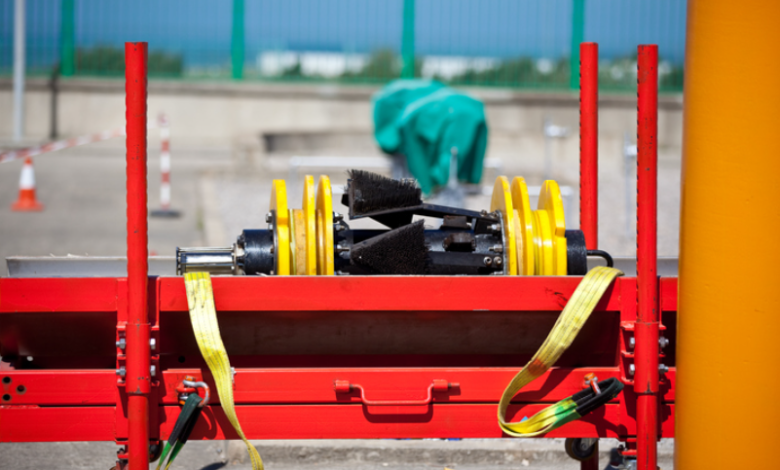

Types within Utility Pigs:
- Cup Pigs: Use polyurethane cups for movement and sealing
- Disc Pigs: Have sealing discs for more flexibility
- Brush Pigs: Include wire or steel brushes for scrubbing pipeline walls
Advantages:
- Efficient cleaning
- Moderate durability
- Available in various sizes
Limitations:
- May get stuck in pipelines with severe bends or restrictions
3. Smart Pigs (Intelligent Pigs)
Overview:
Smart pigs are high-tech tools equipped with sensors and electronic components. They inspect the pipeline’s interior for corrosion, cracks, metal loss, and other defects.
Applications:
- Internal corrosion detection
- Wall thickness measurement
- Leak detection
- Mapping pipeline geometry
Technologies Used:
- Magnetic Flux Leakage (MFL)
- Ultrasonic Testing (UT)
- Electromagnetic acoustic transducers (EMAT)
- Inertial navigation systems (for mapping)
Advantages:
- Detailed data collection
- Regulatory compliance
- Early failure detection
Limitations:
- Expensive
- Requires expert operation and data interpretation
4. Gel Pigs
Overview:
Gel pigs are made from high-viscosity gels and used in situations where mechanical pigs may not be effective or safe. These pigs are typically pumped through the pipeline with fluid.
Applications:
- Debris removal in sensitive or flexible lines
- Chemical cleaning
- Displacing fluids or residues
- Pipelines with changing diameters
Advantages:
- No risk of getting stuck
- Useful in non-piggable pipelines
- Environmentally friendly (biodegradable options available)
Limitations:
- Less effective for hard residue removal
- Single-use and less versatile
5. Sphere Pigs
Overview:
Sphere pigs are inflatable or solid rubber balls used mainly for liquid removal and product batching. They are ideal for pipelines with frequent bends and no launcher or receiver.
Applications:
- Liquid displacement
- Product separation
- Gas pipeline maintenance
Advantages:
- Easy insertion and removal
- Cost-effective
- Suitable for curved pipelines
Limitations:
- Limited cleaning ability
- Inaccurate positioning (they may rotate)
The Role of Pigging in Modern Industry
Industries that rely on long-distance transport pipelines cannot afford system downtime or leaks. Regular pigging using appropriate pipeline pig types ensures:
- Reduced product contamination
- Better flow efficiency
- Early identification of structural issues
- Regulatory compliance (API, NACE, ISO standards)
- Lower maintenance and repair costs
As industries evolve and demand better performance from infrastructure, the diversity and sophistication of pigging tools continue to expand.
Final Thoughts
Understanding different pipeline pig types is not just a technical necessity—it’s a strategic asset for any industry that depends on pipeline infrastructure. From foam pigs for basic cleaning to smart pigs that act like high-tech detectives, each pig type serves a purpose in maintaining the health and efficiency of critical systems.
Whether you’re an engineer, operator, or industry stakeholder, selecting the right pig at the right time can lead to safer pipelines, lower costs, and longer operational lifespans. In the end, investing in the right pipeline pig is investing in the future of your infrastructure.
