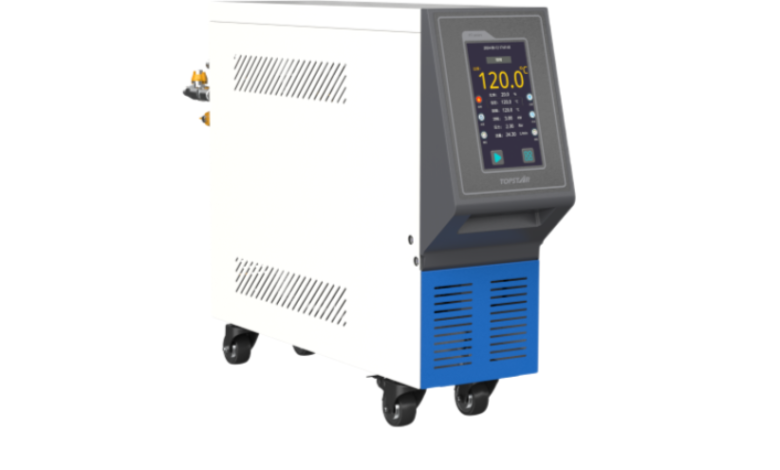

Accurate thermal management is critical to achieving consistent, high-quality parts in injection moulding. The mould temperature controller equipped with carefully tuned PID algorithms enable manufacturers to maintain precise mould temperatures, thereby significantly reducing defects such as warpage, sink marks and weld lines. By dynamically adjusting heater output and coolant flow based on real-time feedback, PID-controlled mould temperature controllers ensure thermal stability from cycle to cycle.
Eliminate overshoot and ensure dimensional accuracy with a mould temperature controller PID.
When mould temperature controllers are used on/off or in fixed cycle control, abrupt heater shutdown often causes mould surface temperatures to exceed target values, while subsequent cooling causes temperatures to fall below target. These thermal excursions cause uneven expansion and contraction of mould steel, resulting in subtle dimensional changes in moulded parts. In contrast, PID regulation systems continuously adjust heater power based on real-time temperature feedback, gradually approaching the set point without overshoot. This smooth regulation maintains mould dimensional stability within ±0.5°C, resulting in moulded parts that consistently meet tight tolerance requirements, typically within ±0.02 mm.
Minimise thermal cycling to prevent surface defects.
Frequent thermal cycling, with rapid heating and cooling at each shot, creates stress concentrations in the mould and polymer, leading to surface defects. Stabilise mould surface temperatures. D-optimised mould temperature controllers keep mould surface temperatures stable, minimising the number of erroneous cycles in each area. The integral portion of the PID loop corrects for accumulated errors, while the derivative portion dampens the rate of change, preventing sudden thermal fluctuations. As a result, the mould surface maintains uniform temperature. Reducing thermal cycling through P for high-gloss automotive trim or transparent packaging, where surface quality is critical, directly correlates to improved aesthetics and functional performance.
Enhanced cycle-to-cycle consistency
Consistency is the cornerstone of high-volume production. PID-regulated mould temperature controllers ensure that the mould temperature is the same at the beginning of each cycle, unaffected by the previous cycle or environmental changes. Feedback from precision RTD sensors is processed through a PID algorithm that distinguishes between momentary disturbances and true temperature drifts, and corrective action is taken only when needed. Topstar’s multi-zone system extends this principle to complex mould designs, keeping each cavity plate and core insert at its set temperature with a resolution of 0.1°C. This level of repeatability ensures that part-to-part variability is kept to the lowest percentile, reducing downstream inspection costs and enabling first-pass yields of more than 99%.
Accelerate heating without sacrificing stability.
Start-up efficiency and thermal stability often conflict: fast ramps are prone to overshoot, while cautious ramp rates delay production. PID-enabled mould temperature controllers address this dilemma with an adaptive set-point ramp. First, they set full heater power, then gradually reduce power intensity as the target temperature approaches. This two-stage approach, driven by real-time PID calculations, reduces heat-up time by up to 50% compared to conventional systems while eliminating overshoot. Topstar controllers feature an auto-tuning routine that automatically optimises PID parameters based on mould quality, fluid heat capacity, and ambient conditions. The result is a faster return to production without sacrificing the tight temperature control that is critical to high-quality moulding.
Ensure consistent quality with PID control of mould temperature controllers.
The injection moulding process is dynamic and subject to disturbances such as material batch variations, cooling water temperature fluctuations, and cycle rate changes. PID-controlled mould temperature controllers adapt to these disturbances by continuously analysing the error between the setpoint and actual temperature. This setpointional term handles immediate deviations, the integral term corrects ongoing offsets, and the derivative term predicts future changes and provides a customised response within milliseconds. This real-time adaptability prevents subtle disturbances from escalating into major defects such as weld lines or shortcuts. In critical applications such as medical implants or conductive plastic parts, this powerful compensation ensures that each part meets stringent performance requirements under changing production conditions.
See also How Can You Run a Successful Instagram Giveaway Without Violating the Rules?
Ultimately
PID algorithms are at the heart of high-performance mould temperature controllers, providing the accuracy, stability, and adaptability required for world-class injection moulding. PID tuning controllers directly improve product quality, yield, and production efficiency by eliminating overshoot, minimising thermal cycling, ensuring cycle-to-cycle repeatability, accelerating heat-up, compensating for disturbances, enabling multi-zone control, and supporting data-driven optimisation.
